Viga IPR

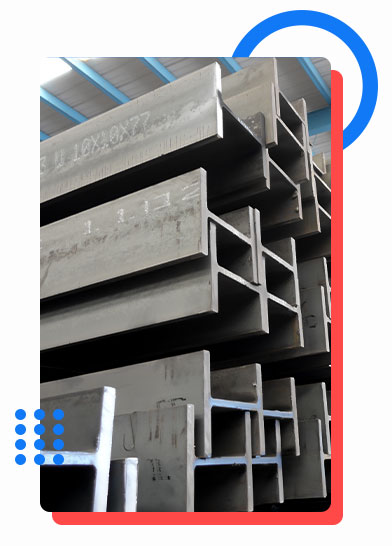

Vigas IPR apiladas

¿Qué es una viga de acero IPR?

•Perfiles de acero•

Las vigas IPR se encargan de soportar las cargas de las losas o los elementos planos colocados sobre de ellas ademas de llevar dichas cargas hacia las columnas, de estas hacia sus bases y de estas hacia el suelo.
Como elemento estructural rigido las vigas IPR se disponen horizontalmente con el objetivo de vincular columnas entre ellas.

Especificaciones de la viga IPR

Los perfiles IPR (VIGA 1 Perfil Regular) están fabricados bajo las especificaciones ASTM-A-6-84 CAmerican Society For Testing and Material y la Norma ASTM-A-6.

Nominal
Peso
Peralte
Patín
Alma
D
Ancho (bf)
Espesor (tf)
Espesor (tw)
pulg. (d x bf)
mm. (d x bf) kg./m. lb./pie pulg. mm pulg. mm pulg. mm pulg. mm
4x4
101.6 x 101.6 19.3 13 4.16 106 4.06 103 0.35 8.8 0.28 7.11
6x4
152.4 x 101.6 12.6 8.5 5.83 148 3.94 100 0.20 5.0 0.17 4.3
13.4 9 5.90 150 3.94 100 0.22 5.5 0.17 4.3
17.9 12 6.03 153 4.00 102 0.28 7.1 0.23 5.8
23.8 16 6.28 160 4.03 102 0.41 10.3 0.26 6.6
6x6
152.4 x 101.6 22.3 15 5.99 152 5.99 152 0.26 6.6 0.23 5.8
29.8 20 6.20 157 6.02 153 0.37 9.3 0.26 6.6
37.2 25 6.38 162 6.08 154 0.46 11.6 0.32 8.1
8x4
203.2 x 101.6 14.9 10 7.89 200 3.94 100 0.21 5.2 0.17 4.3
19.3 13 7.99 203 4.00 102 0.26 6.5 0.23 5.8
22.3 15 8.11 206 4.02 102 0.32 8.0 0.25 6.2
8x5 1/4
203.2 x 133.4 26.8 18 8.14 207 5.25 133 0.33 8.4 0.23 5.8
31.2 21 8.28 210 5.27 134 0.40 10.2 0.25 6.4
8x6-1/2
203.2 x 165.1 35.7 24 7.93 201 6.50 165 0.40 10.2 0.25 6.2
41.7 28 8.06 205 6.54 166 0.47 11.8 0.29 7.2
8x8
203.2 x 203.2 46.1 31 8.00 203 8.00 203 0.44 11.0 0.29 7.2
52.1 35 8.12 206 8.02 204 0.50 12.6 0.31 7.9
59.5 40 8.25 210 8.07 205 0.56 14.2 0.36 9.1
71.4 48 8.50 216 8.11 206 0.69 17.4 0.40 10.2
86.3 58 8.75 222 8.22 209 0.81 20.6 0.51 13.0
10x4
254 x 101.6 17.9 12 9.87 251 3.96 101 0.21 5.3 0.19 4.8
22.3 15 9.99 254 4.00 102 0.27 6.9 0.23 5.8
25.3 17 10.11 257 4.01 102 0.33 8.4 0.24 6.1
28.3 19 10.24 260 4.02 102 0.40 10.0 0.25 6.4
10x5 3/4
254x146 32.7 22 10.17 258 5.75 146 0.36 9.1 0.24 6.1
38.7 26 10.33 262 5.77 147 0.44 11.2 0.26 6.6
44.6 30 10.47 266 5.81 148 0.51 13.0 0.30 7.6
10x8
254 x 203.2 49.1 33 9.73 247 7.96 202 0.44 11.0 0.29 7.4
58 39 9.92 252 7.99 203 0.53 13.5 0.32 8.0
67.0 45 10.10 257 8.02 204 0.62 15.7 0.35 8.9
10x10
254 x 254 72.9 49 9.98 253 10.00 254 0.56 14.2 0.34 8.6
80.4 54 10.09 256 10.03 255 0.62 15.6 0.37 9.4
89.3 60 10.22 260 10.08 256 0.68 17.3 0.42 10.7
101.1 68 10.40 264 10.13 257 0.77 19.60 0.47 11.9
114.57 77 10.600 269 10.190 259 0.870 22.1 0.530 13.5
130.94 88 10.840 275 10.265 261 0.990 25.1 0.605 15.4
148.80 100 11.100 282 10.340 263 1.120 28.4 0.680 17.3
166.65 112 11.360 289 10.415 265 1.250 31.8 0.755 19.2
12x4
304.8 x 101.6 20.8 14 11.91 303 3.97 101 0.23 5.7 0.20 5.1
23.8 16 11.99 305 3.99 101 0.27 6.7 0.22 5.6
28.3 19 12.16 309 4.01 102 0.35 8.9 0.24 6.0
32.7 22 12.31 313 4.03 102 0.43 10.8 0.26 6.6
12x6 1/2
304.8 x 165.1 38.7 26 12.22 310 6.49 165 0.38 9.7 0.23 5.8
44.6 30 12.34 313 6.52 166 0.44 11.2 0.26 6.6
52.1 35 12.50 318 6.56 167 0.52 13.2 0.30 7.6
12x8
304.8 x 203.2 59.5 40 11.94 303 8.01 203 0.52 13.1 0.30 7.5
67.0 45 12.06 306 8.05 204 0.58 14.6 0.34 8.5
74.4 50 12.19 310 8.08 205 0.64 16.3 0.37 9.4
12x10
304.8 x 254 78.9 53 12.06 306 10.00 254 0.58 14.6 0.35 8.8
86.3 58 12.19 310 10.01 254 0.64 16.3 0.36 9.1
12x12
304.8 x 304.8 96.7 65 12.12 308 12.00 305 0.61 15.4 0.39 9.9
107.1 72 12.25 311 12.04 306 0.67 17.0 0.43 10.9
117.6 79 12.38 314 12.08 307 0.74 18.7 0.47 11.9
129.5 87 12.530 318 12.125 308 0.810 20.6 0.515 13.1
142.9 96 12.71 323 12.16 309 0.90 22.9 0.55 14.0
157.72 106 12.890 327 12.220 310 0.990 25.1 0.610 15.5
202.36 136 13.410 341 12.400 315 1.250 31.8 0.790 20.1
226.17 152 13.710 348 12.480 317 1.400 35.6 0.870 22.1
252.99 170 14.030 356 12.570 319 1.560 39.6 0.960 24.4
282.72 190 14.380 365 12.670 322 1.735 44.1 1.060 26.9
14x5
355.6 x 127 32.7 22 13.74 349 5.00 127 0.34 8.5 0.23 5.8
38.7 26 13.91 353 5.03 128 0.42 10.7 0.26 6.5
14x6 3/4
355.6 x 171.4 44.6 30 13.84 352 6.73 171 0.39 9.8 0.27 6.9
50.6 34 13.98 355 6.75 171 0.46 11.6 0.29 7.2
56.5 38 14.10 358 6.77 172 0.52 13.1 0.31 7.9
14x8
355.6 x 203.2 64.0 43 13.66 347 8.00 203 0.53 13.5 0.31 7.7
71.4 48 13.79 350 8.03 204 0.60 15.1 0.34 8.6
78.9 53 13.92 354 8.06 205 0.66 16.8 0.37 9.4
14x10
355.6 x 254 90.8 61 13.89 353 10.00 254 0.65 16.4 0.38 9.5
101.2 68 14.04 357 10.04 255 0.72 18.3 0.42 10.5
110.1 74 14.17 360 10.07 256 0.79 19.9 0.45 11.4
122.0 82 14.31 363 10.13 257 0.855 21.7 0.510 13.0
14x14 1/2
355.6 x 368.3 133.9 90 14.02 356 14.52 369 0.71 18.0 0.44 11.2
147.3 99 14.16 360 14.57 370 0.78 19.8 0.49 12.3
162.2 109 14.32 364 14.61 371 0.86 21.8 0.53 13.3
178.6 120 14.48 368 14.67 373 0.94 23.9 0.59 15.0
196.4 132 14.66 372 14.73 374 1.03 26.2 0.65 16.4
14x16
355.6 x 406.4 215.8 145 14.78 375 15.50 394 1.09 27.7 0.68 17.3
236.6 159 14.98 380 15.57 395 1.19 30.2 0.75 18.9
261.9 176 15.22 387 15.65 398 1.31 33.3 0.83 21.1
287.2 193 15.48 393 15.71 399 1.44 36.6 0.89 22.6
313.96 211 15.720 399 15.800 401 1.560 39.6 0.980 24.9
382.41 257 16.380 416 15.995 406 1.890 48.0 1.175 29.8
16x5 1/2
406.4 x 139.7 38.7 26 15.69 399 5.50 140 0.35 8.8 0.25 6.4
46.1 31 15.88 403 5.53 140 0.44 11.2 0.28 7.0
16x7
405.4 x 177.8 53.6 36 15.86 403 6.99 177 0.43 10.9 0.30 7.5
59.5 40 16.01 407 7.00 178 0.51 12.8 0.31 7.7
67.0 45 16.13 410 7.04 179 0.57 14.4 0.35 8.8
74.4 50 16.26 413 7.07 180 0.63 16.0 0.38 9.7
84.8 57 16.43 417 7.12 181 0.72 181 0.43 10.9
16x10 1/4
406.4 x 260.3 99.7 67 16.33 415 10.24 260 0.67 16.9 0.40 10.0
114.6 77 16.52 420 10.30 261 0.76 19.3 0.46 11.6
132.4 89 16.75 425 10.37 263 0.88 22.2 0.53 13.3
149 100 16.970 431 10.425 265 0.985 25.0 0.585 14.9
18x6
457.2 x 152.4 52.1 35 17.70 450 6.00 152 0.43 10.8 0.30 7.6
59.5 40 17.90 455 6.02 153 0.53 13.3 0.32 8.0
68.4 46 18.06 459 6.06 154 0.61 15.4 0.36 9.1
18x7 1/2
457.2 x 190.5 74.4 50 17.99 457 7.50 190 0.57 14.5 0.36 9.0
81.8 55 18.11 460 7.53 191 0.63 16.0 0.39 9.9
89.3 60 18.24 463 7.56 192 0.70 17.7 0.42 10.5
96.7 65 18.35 466 7.59 193 0.75 19.1 0.45 11.4
105.6 71 18.47 469 7.64 194 0.81 20.6 0.50 12.6
18x11
457.2 x 279.4 113.1 76 18.21 463 11.04 280 0.68 17.3 0.43 10.8
128.0 86 18.39 467 11.09 282 0.77 19.6 0.48 12.2
144.3 97 18.59 472 11.15 283 0.87 22.1 0.54 13.6
157.7 106 18.73 476 11.20 284 0.94 23.9 0.59 15.0
177.1 119 18.97 482 11.27 286 1.06 26.9 0.66 16.6
193.44 130 19.250 489 11.160 283 1.200 30.5 0.670 17.0
213 143 19.490 495 11.220 285 1.320 33.5 0.730 18.5
235 158 19.720 501 11.300 287 1.440 36.6 0.810 20.6
260.40 175 20.040 509 11.375 289 1.590 40.4 0.890 22.6
285.69 192 20.350 517 11.455 291 1.750 44.4 0.960 24.4
21x6-1/2
533.4 x 165.1 65.5 44 20.66 525 6.50 165 0.45 11.4 0.35 8.9
74.4 50 20.83 529 6.53 166 0.54 13.6 0.38 9.7
84.8 57 21.06 535 6.56 166 0.65 16.5 0.41 10.3
21x8 1/4
533.4 x 209.5 92.3 62 20.99 533 8.24 209 0.62 15.6 0.40 10.2
101.2 68 21.13 537 8.27 210 0.69 17.4 0.43 10.9
108.6 73 21.240 539 8.295 211 0.740 18.8 0.455 11.6
123.5 83 21.430 544 8.355 212 0.83 21.2 0.515 13.1
138.4 93 21.62 549 8.42 214 0.93 23.6 0.58 14.7
21x12 1/4
533.4 x 311.15 150.3 101 21.36 543 12.29 312 0.80 20.3 0.50 12.7
165.2 111 21.51 546 12.34 313 0.88 22.2 0.55 14.0
181.5 122 21.68 551 12.39 315 0.96 24.4 0.60 15.2
21x12-1/2
533.4 x 317.5 218 147 22.06 560 12.51 318 1.150 29.2 0.720 18.3
24 x 7
609.6 x 177.8 81.8 55 23.57 599 7.01 178 0.51 12.8 0.40 10.0
92.3 62 23.74 603 7.04 179 0.59 15.0 0.43 10.9
24 x 9
609.6 x 288.6 101.2 68 23.73 603 8.97 228 0.59 14.9 0.42 10.5
113.1 76 23.93 608 8.99 228 0.68 17.3 0.44 11.2
125.0 84 24.10 612 9.02 229 0.77 19.6 0.47 11.9
139.9 94 24.31 617 9.07 230 0.88 22.2 0.52 13.1
153.3 103 24.53 623 9.00 229 0.98 24.9 0.55 14.0
24 x 12-3/4
609.6 x 323.8 154.8 104 24.06 611 12.75 324 0.75 19.1 0.50 12.7
174.1 117 24.26 616 12.80 325 0.85 21.6 0.55 14.0
194.9 131 24.48 622 12.86 327 0.96 24.4 0.61 15.4
217.2 146 24.74 628 12.90 328 1.09 27.7 0.65 16.5
241.1 162 25.00 635 12.96 329 1.22 31.0 0.71 17.9
27 x10
685.8 x 254 125.0 84 26.71 678 9.96 253 0.64 16.3 0.46 11.7
139.9 94 26.92 684 9.99 254 0.75 18.9 0.49 12.4
151.8 102 27.09 688 10.02 254 0.83 21.1 0.52 13.1
169.6 114 27.29 693 10.07 256 0.93 23.6 0.57 14.5
191.95 129 27.630 702 10.010 254 1.100 27.9 0.610 15.5
27 x 14
685.8 x 355.6 217.00 146 27.380 695 13.965 355 0.975 24.8 0.605 15.4
239.70 161 27.590 701 14.020 356 1.080 27.4 0.660 16.8
288.67 194 28.110 714 14.035 356 1.340 34.0 0.750 19
323.00 217 28.430 722 14.115 359 1.500 38.1 0.830 21.1
350 235 28.660 728 14.190 360 1.610 40.9 0.910 23.1
384 258 28.980 736 14.270 362 1.770 45 0.980 24.9
30 x 10-1/2
762 x 266.7 133.9 90 29.53 750 10.40 264 0.61 15.5 0.47 11.9
147.3 99 29.65 753 10.45 265 0.67 17 0.52 13.2
160.7 108 29.83 758 10.48 266 0.76 19.3 0.55 13.8
172.6 116 30.01 762 10.50 267 0.85 21.6 0.57 14.4
196.4 132 30.31 770 10.54 268 1.00 25.4 0.61 15.6
30 x 15
762 x 381 257.42 173 30.440 773 14.985 381 1.065 27.1 0.655 16.6
313.96 211 30.940 786 15.105 384 1.315 33.4 0.775 19.7
33 x 11-1/2
838.2 x 292.1 175.6 118 32.86 835 11.48 292 0.74 18.8 0.55 14.0
193.4 130 33.09 840 11.51 292 0.86 21.7 0.58 14.7
209.8 141 33.30 846 11.54 293 0.96 24.4 0.61 15.4
226.2 152 33.49 851 11.57 294 1.06 26.8 0.64 16.1
251.5 169 33.82 859 11.50 292 1.22 31.0 0.67 17.0
33 x 15 3/4
838.2 x 400.05 328.88 221 33.390 862 15.805 401 1.275 32.4 0.775 19.7
36 x 12
914.4 x 304.8 200.9 135 35.55 903 11.95 304 0.79 20.1 0.60 15.2
223.2 150 35.85 911 11.98 304 0.94 23.9 0.63 15.9
238.1 160 36.01 915 12.00 305 1.02 25.9 0.65 16.5
252.99 170 36.170 919 12.030 306 1.100 27.9 0.680 17.3
270.85 182 36.330 923 12.075 307 1.180 30.0 0.725 18.4
288.70 194 36.490 927 12.115 308 1.260 32.0 0.765 19.4
312.51 210 36.690 932 12.180 309 1.390 34.5 0.830 21.1
345.25 232 37.120 943 12.120 308 1.570 39.9 0.870 22.1
40 x 12
1016 x 304.8 221.74 149 38.200 970 11.810 300 0.830 21.1 0.630 16.0
248.52 167 38.590 980 11.810 300 1.025 26.0 0.650 16.5
272.33 183 38.980 990 11.810 300 1.200 31.0 0.650 16.5
314 211 39.370 1000 11.810 300 1.415 35.9 0.750 19.1
349.72 235 39.690 1008 11.890 302 1.575 40.0 0.830 21.1
392.87 264 40.00 1016 11.930 303 1.730 43.9 0.960 24.4
Vista a detalle de vigas de caro negro, vigas ipr

Usos de la viga IPR

La vigas IPR son utilizadas con 2 fines, como estructura principal formando marcos para almacenes, casetas, cobertizos, aulas, etc. Como estructura secundaria en cubiertas y fachadas de edificios prefabricados, naves industriales, centros comerciales, etc.

Viga de acero

Estabilidad estructural

Material para uso industrial

Fácil de perforar y soldar
